DATASHEET:
Overview

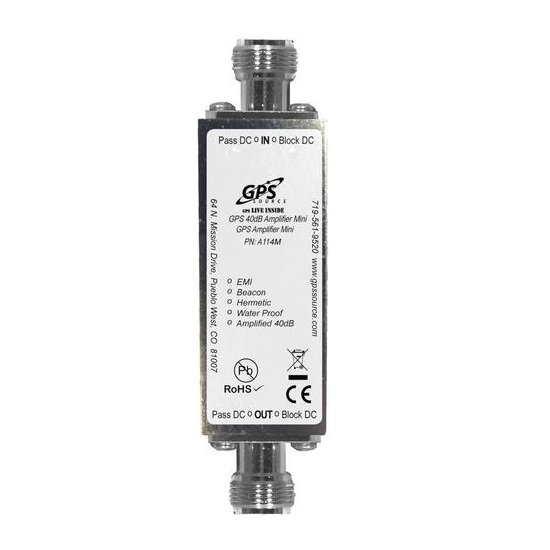

The A114M Amplifier is a GPS in-line 40 dB amplifier. It is a little gain block with a single stage input unit. It functions by placing it in line with the receiver’s antenna and because of its low current requirement it is able to receive power from the receiver antenna.
The A114M Amplifier overcomes satellite navigation systems’ thin-link margins. It has high gain of 40 dB and noise lower than 2 dB.
An optional version provides a filter to block extraneous signals from reaching the receiver.
The A1114M Amplifier also comes with several connector and port options for specific requirements.
Features
- Passes Galileo, GLONASS, GPS for L1/L2
- Filtered option available
- Excellent gain at 40 dB
- 0 dB to 40 dB variable gain option available
- Designed to MIL-STD-810
Technical Specifications
| Noise: | F less than 1.8 dB, G = 40 dB |
| Maximum RF input: | 10 dBm |
| Device current: | 20 mA |
| Operating temperature: | -40 degrees Celsius to +85 degrees Celsius |
Ordering
The A114M Amplifier from GPS Source can be ordered through TerrisGPS. Please submit your inquiry by completing the Request Pricing form if you would like more information about this amplifier.
