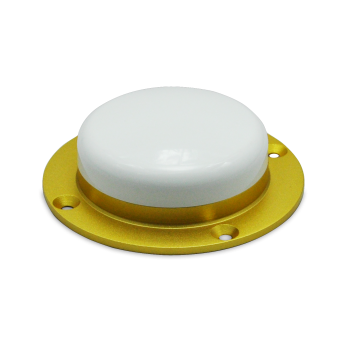

Harxon HX-CA3603A GNSS Aviation Antenna


GPS L1 + GLONASS L1 + BeiDou B1 with 36dB Gain



The Harxon HX-CA3603A GNSS aviation antenna features a multi-point feed to achieve greater phase center stability. It improves measurement accuracy and provides better positioning.

The ability to receive low elevation signals with high gain makes the HX-CA3603A a suitable choice for tracking visible satellites and providing stable GNSS data under different flight attitudes.

The antenna LNA features excellent out-of-band rejection performance providing the stability and reliability of GNSS signals.

The dimensions of the HX-CA3603A are only 90 mm x 27.5 mm (without connector) with a light weight of 13 grams, which makes it ideal to be used with professional drones, unmanned vessels or where high precision operations are needed. The IP67 ruggedized cover can protect the antenna from dust and water with its patented waterproof and breathable design.


  • Supports GPS, GLONASS and BeiDou
  • Stable phase center
  • Small form factor
  • IP67

Technical Specifications

BeiDou: B1
Nominal Impedance: 50Ω
Polarization: RHCP
Axial Ratio: ≤3dB
Gain at Zenith (90°): 1164-1278 MHz – 3dBi (maximum)
1520-1615 MHz 3dBi (maximum)
LNA Gain: 36±2dB
Noise Figure: ≤1.5dB
Output/Input VSWR ≤2.0
Operation Voltage: +3.3 to + 12VDC
Operation Current: 45mA (maximum)
Group Delay Ripple: <5ns
Dimensions: ¢90*27.5mm
Connector: TNC female (selectable SMA female)
Weight: ≤150g
Mounting: 4 M4 screws installation
Operating Temperature: -40 °C to +85 °C
Storage Temperature: -55 °C to +85 °C
Humidity: 95% non-condensing
Water/Dust Resistance: IP67


The HX-CA7607A GNSS aviation antenna from Harxon is available through TerrisGPS. Please use the Request Pricing form to contact us for further information.
