DATASHEET:
Overview

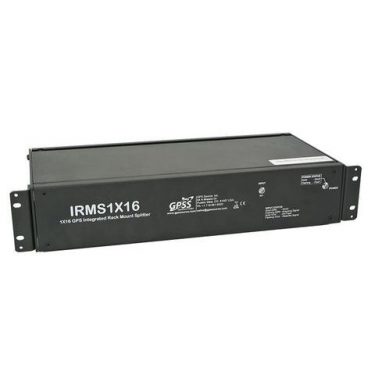

The standard configuration of the IRMS116 GPS integrated rack mount splitter has dual +/-48V telecom power and a regulated DC output voltage, with multiple power options available. The output voltage passes through the antenna input port and powers the active GPS antenna connected to the port. The DC blocked outputs feature a 200 Ohm DC resistive load to ground simulating an antenna DC current draw for any receiver connected to those ports.
A GNSS receiver within the IRMS116 monitors the antenna signal strength. There is also internal monitoring of the antenna current draw.
The dual power supply option allows two internal power supply units to share the load. If one unit is not available, the other will seamlessly take over without any loss of power. The power supply LED fault indicator is clearly visible on the front panel, and can also transmit using the contacts made available on the back panel.
Features
- 16 GPS/GNSS Output Ports
- Single Antenna Input Port
- +/-48VDC Redundant Power Supplies
- Embedded Antenna Health Sensor
- Passes GPS L1/L2, GLONASS L1/L2, Galileo, Beidou
- Antenna Fault Indicator Light
- Power Fault Indicator Light
- Embedded Receiver to Monitor Signal
- Dual Power Option
- Standard 19 Inch Rack Mount Configuration
Options
- Source Voltage Options
- RF
- Housings
- DC Blocked
Ordering
The IRMS116 1×16 GPS integrated rack mount splitter from GPS Source is available through TerrisGPS. If you would like more information about this product, please feel free to get in touch with us by completing the Request Pricing form.
