DATASHEET:
Overview

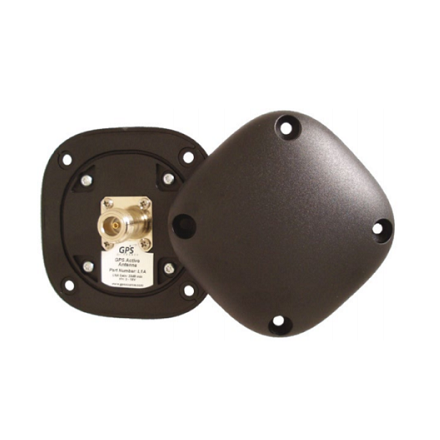

The L1P passive antenna from GPS Source supports a wide range of common RF connectors including SMA-plug, SMA-jack, TNC-female, and N-female. It can be integrated with many GPS applications easily.
The L1P offers an excellent gain of less than 3dBiC and its frequency selectivity capability allows it to filter out out-of-band signals.
Features
- Excellent gain of less than 3dBiC
- Support common RF connectors
- Frequency selectivity to reject out-of-band signals
- Pole mount
Technical Specifications
| Frequency range: | 1575 MHz |
| Gain: | 3 dBiC (typically 2.8 dBiC) |
| Output SWR: | 2.5:1 |
| Polarization: | Right hand circular |
| Shock: | 40 g |
| Vibration: | 6 g (RMS) |
| Maximum RF input: | 10 dBm |
| Operating temperature: | -40 Celsius to +85 Celsius |
| RF connector: | N-female, TNC-female, SMA-jack, SMA-plug |
| Mount: | Pole mount L-bracket with U-bolts (1 ½” pipe or smaller) |
Ordering
The L1P antenna from GPS Source can be ordered through TerrisGPS. If you have any question, please feel free to send us your inquiries by completing the Request Pricing form.
